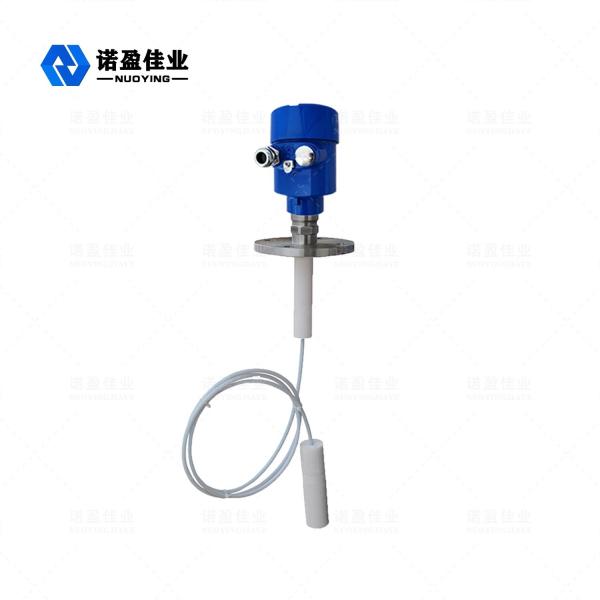

NYRD701 PTFE Guided Wave Radar Level Transmitter High Corrosive Media

Name: NYRD701 PTFE Guided Wave Radar Level Transmitter High Corrosive Media
Brand: NUOYINGJIAYE
Price: 550 USD

China NYRD701 PTFE Guided Wave Radar Level Transmitter High Corrosive Media factory

Brand Name : NUOYINGJIAYE

Model Number : NYRD701（PTFE）

Certification : CE,ATEX,SIL

Place of Origin : Xi'an,Shannxi,China

MOQ : 1pcs

Price : $550~$850/pcs

Payment Terms : T/T

Supply Ability : 1000 pcs/per month

Delivery Time : 7 working days

Packaging Details : Carton, 40cm x 30cm x 30cm

Typical application : Liquids, powders,particles, corrosive media

Antenna material : PTFE (optional)

Measuring range : 30 m

Accuracy : ±1mm

Power supply : 24 VDC(Two-wire,Four- wire)

Medium temperature : -40～+250℃

Pressure : -0.1～2.0MPa

Explosion-proof grade : ExdⅡCT6 Gb(optional)

Contact Now

Highly Corrosive Media NYRD701 PTFE 1.8GHz Guided Wave Radar Level Meter

NYRD701 PTFE 1.8GHz Guided Wave Radar Level Meter

Guided wave radar level meter antenna using PTFE material,PTFE commonly known as "plastics king", PTFE is made up of tetrafluoroethylene by the polymerization of polymer compounds, it has excellent chemical stability, high corrosion resistance, sealing, lubrication is not sticky, electric insulation and good anti-aging endurance, PTFE has the following features:

High temperature resistance -- operating temperature up to 250℃.
Low temperature resistance -- Even when the temperature drops to -196℃, 5% elongation can be maintained.
Corrosion resistance - resistant to strong acids and bases, water and various organic solvents.
Weather resistance - has the best aging life of plastics.
High lubrication - the lowest friction coefficient of solid materials.
Non-adhesion - does not adhere to any substance.
Non-toxic -- with physiological inertia, as artificial blood vessels and organs implanted in the body for a long time without adverse reactions.

NYRD701 PTFE 1.8GHz Guided Wave Radar Level Meter Technical Parameter

Typical application	Liquids, powders,particles, corrosive media
Antenna material	PTFE (optional)
Measuring range	30 m
Accuracy	±1mm
Power supply	24 VDC(Two-wire,Four- wire) (optional)
Medium temperature	-40～+250℃
Pressure	-0.1～2.0MPa
Process connection	Sanitary clamp,Thread, Flange (optional)
Protection class	IP67,IP68 (optional)
Explosion-proof grade	ExdⅡCT6 Gb(optional)
Signal output	4...20mA/HART/Modbus...

※ Note: Products can be customized according to the specific requirements of users!
