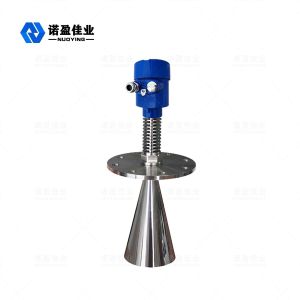

High Temperature Intelligent Radar Level Meter Solid Dust Bracket

Name: High Temperature Intelligent Radar Level Meter Solid Dust Bracket
Brand: NUOYINGJIAYE
Price: 1 USD

Brand Name : NUOYINGJIAYE

Model Number : NYRD-803S

Certification : CE

Place of Origin : Xi'an, Shaanxi,China

MOQ : 1 pcs

Price : Please Contact Me

Payment Terms : T/T

Supply Ability : 1000 pcs/ pre month

Delivery Time : 7-15 working days

Packaging Details : Carton, 60cm×30cm×30cm

Product model : NYRD803S

Process connection : flange,(optional)

Antenna form : horn type

Measurement range : 35 m

Antenna material : 304.316

Power supply : 220VAC

Process temperature : -40~ +250 °C

Process pressure : -0.1~2.0MPa

Contact Now

High Temperature Intelligent Radar Level Meter Solid Dust Bracket

Intelligent Radar Level Meter Working Principle

By entering empty tank height E(= zero), full tank height F(= full range) and some application parameters, the application parameters will automatically adapt the meter to the measuring environment, corresponding to 4-20mA output.

Intelligent Radar Level Meter Technical Parameter

Power supply	24VDC(two wire, four wire), 220VAC
Signal output	4... 20mA/HART/RS485/Modbus...
Process temperature	-40~ +130°C,-40~ +250 °C
Process pressure	-0.1~0.3MPa, -0.1~2.0MPa,-0.1~4.0MPa
Process connection	Thread, bracket, flange,(optional)
Electrical interface	M20×1.5 , ½ " NPT
Protection grade	IP 65,IP 67,IP 68 (optional)
Explosion-proof grade	ExiaIICT6Ga, ExdIICT6Gb(see certificate for details)
